Full Flap Auto Bottom Boxes
A full-flap auto-bottom carton whose overlapping flaps add strength for heavier fills.
Structural & Engineering Details
How This Structure Works

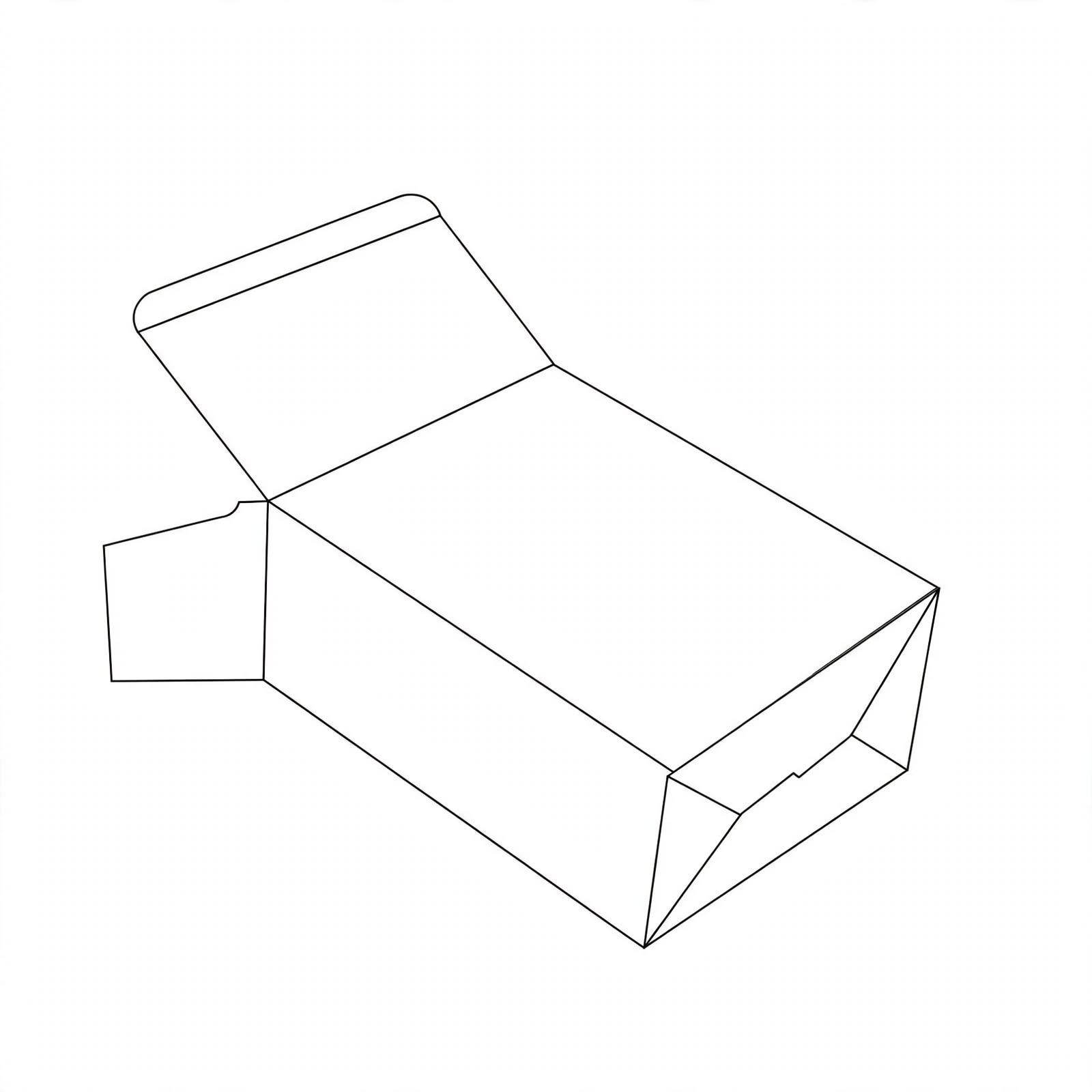

A full-flap auto-bottom carton overlaps its top flaps fully across the opening while the pre-glued base auto-erects, adding strength for heavier fills. The overlapping full flaps meet across the whole top rather than leaving a gap, which stiffens the closure and helps protect contents. The auto-bottom springs square as the box opens, so the base needs no manual lock sequence. This geometry suits products where a firmer top and a fast base both matter, since the full flaps reinforce the closure while the auto-bottom keeps assembly quick. It presents as a sturdy carton that closes securely over a substantial load.
Good Fit For
- Heavier retail or shipping fills
- Cartons needing a reinforced top closure
- Lines wanting a fast, self-squaring base
Key Advantages
- Full flaps overlap for a firmer top
- Auto-bottom squares up in one motion
- Reinforced closure suits heavier loads
Assembly & Construction
The bottom is pre-glued so the flat blank auto-erects into a locked base when opened, while the top flaps are sized to overlap fully across the opening for a reinforced closure. Assemblers pop the base, load the box, and fold the full flaps closed, taping or tucking as needed, so the carton gains a firm top and a fast base with fewer manual steps than a fully hand-locked build.
Materials & Board Options
A heavier paperboard can suit lighter reinforced cartons, while corrugated grades are often chosen for weightier contents where the full-flap top adds meaningful protection. Final board, any flute, and coating typically depend on the product weight, carton size, print, filling method, and handling, so a loaded sample usually confirms the closure and base hold under the intended fill.
Pre-Production Planning Checklist
- Confirm the full flaps overlap fully across the top
- Check the auto-bottom holds square under a heavier fill
- Verify the closure seals or tucks cleanly at the overlap
