Gable Bags Auto Bottom
A gable-top carry bag on an auto-bottom base for quick assembly and dependable carrying.
Structural & Engineering Details
How This Structure Works

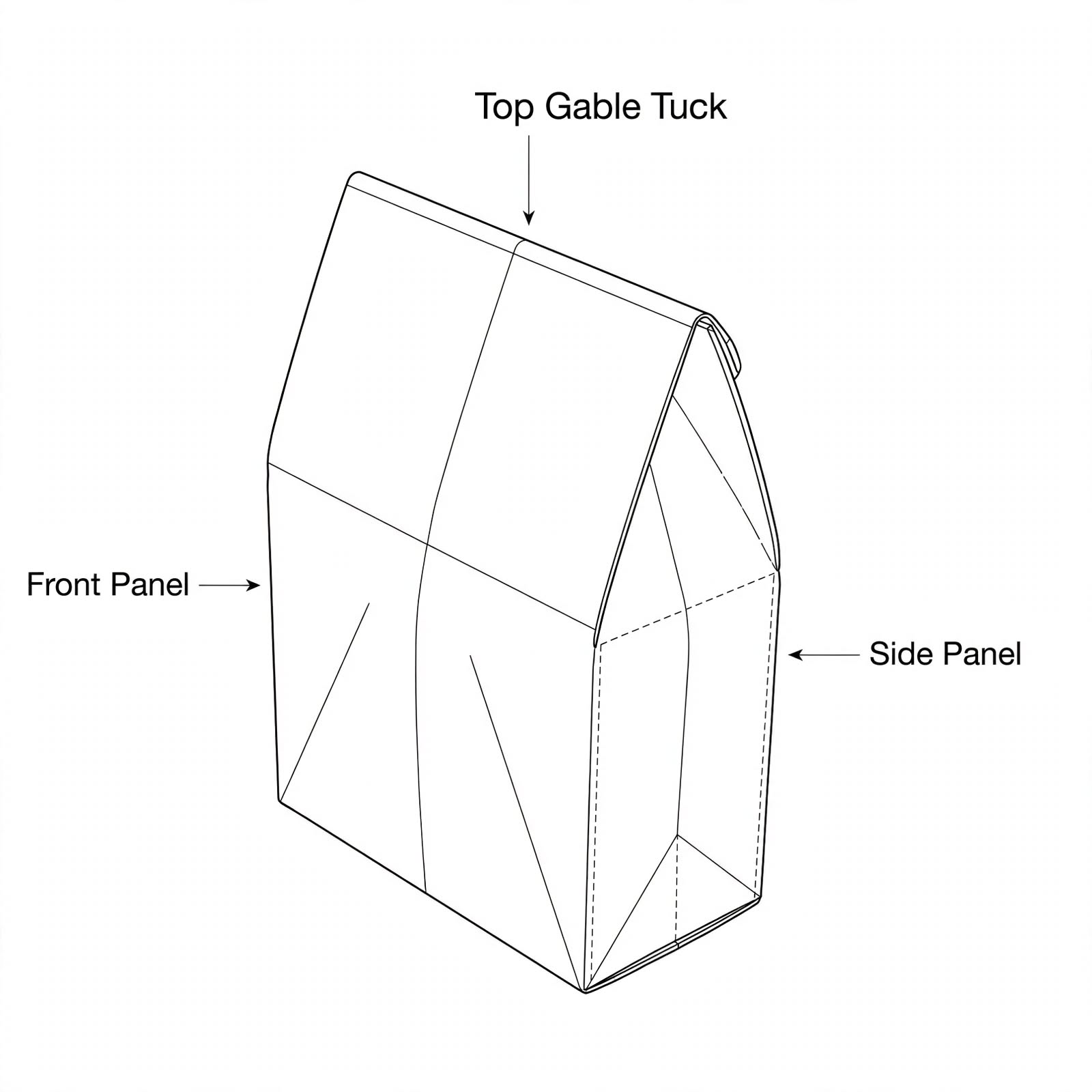

A gable bag on an auto-bottom base pairs a handled gable top with a pre-glued bottom that springs square, so the bag erects fast and stands filled. The gable peak folds into a carry handle while the auto-bottom auto-erects as the flat bag is opened, removing the manual base-lock step. This geometry suits handled takeaway and gift use where speed of setup and dependable carrying both matter. Staff mainly open the bag, load it, and close the gable top, so assembly stays quick across many units. The result is a carryable, self-standing package that presents branding across its broad gable faces.
Good Fit For
- Handled takeaway and gift packaging
- High-volume assembly needing speed
- Bags that must stand and carry filled
Key Advantages
- Auto-bottom springs square in one motion
- Gable top forms a ready carry handle
- Fast setup across many units
Assembly & Construction

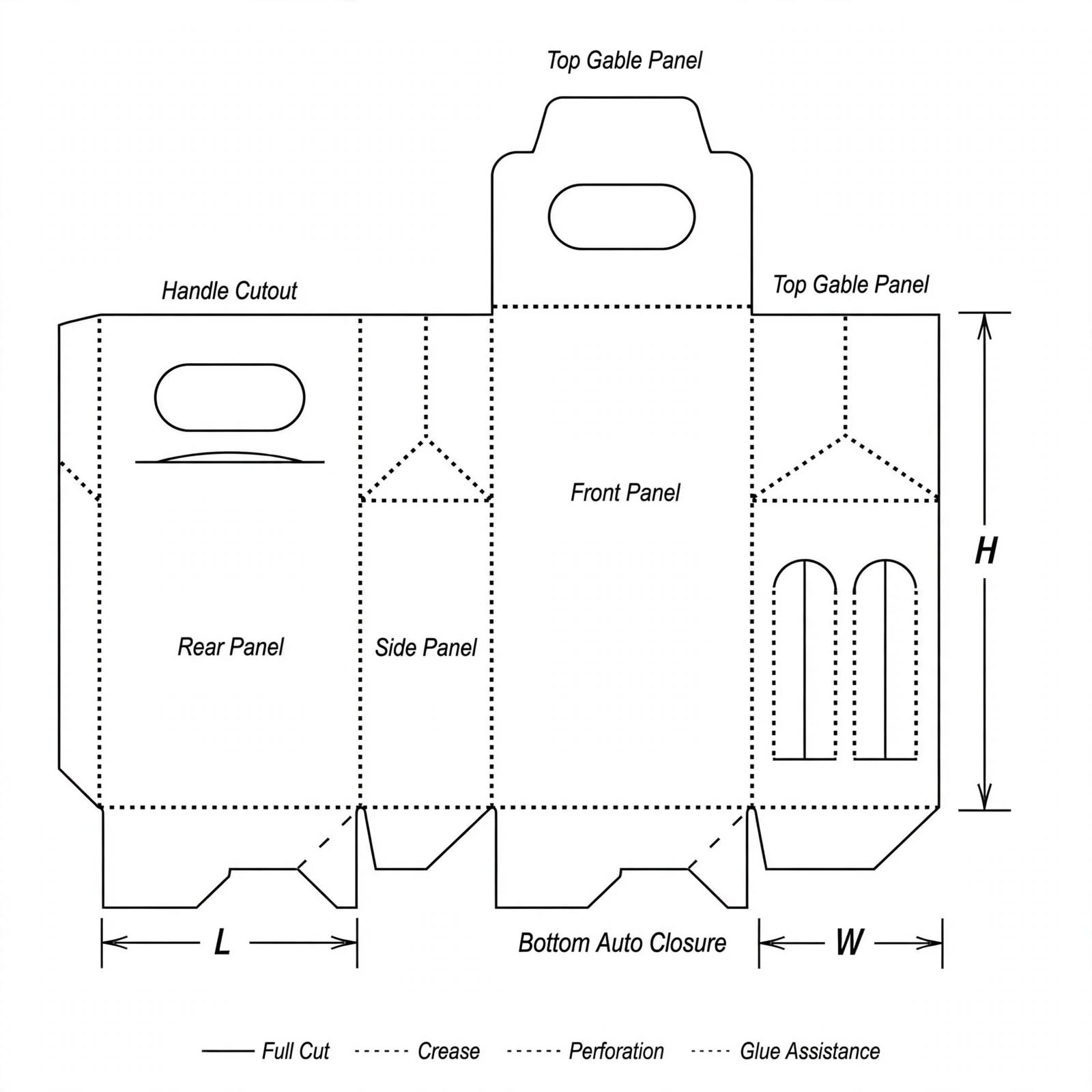

The bottom is pre-glued so the flattened bag auto-erects into a locked base as it opens, while the top panels fold into a gable peak with slots that form a handle. Assemblers open the bag, load it, and close the gable so the handle engages, so setup skips the manual base sequence and stays to opening, filling, and closing. The pre-glued base keeps the bag standing under the fill.
Materials & Board Options
A firm, printable paperboard suits handled auto-bottom bags where the base glue and handle must hold under the load. Heavier fills can point to a thicker caliper. Final board, coating, and handle reinforcement typically depend on the contents weight, bag size, print, filling method, and carrying and shipping, so a loaded sample usually confirms the base and handle hold up.
Pre-Production Planning Checklist
- Confirm the auto-bottom squares up under the filled weight
- Check the handle resists tearing at the load
- Verify the gable top closes cleanly so the handle holds
